The idea

All over the world, many users of erosion machines rely on SMARTVICE. This is due to important reasons: this system represents more than a simple clamping device.

Cutting-edge moving slide system of these vices allows a faster and more accurately clamping over conventional systems placed on market. The simple and intuitive adjustment system allows the fast workpiece adjustment.

Thanks to our clamping systems you will save time increasing the competitiveness of your Company.

SPEED AND ACCURANCY IN 3 STEPS

Step 1 Positioning

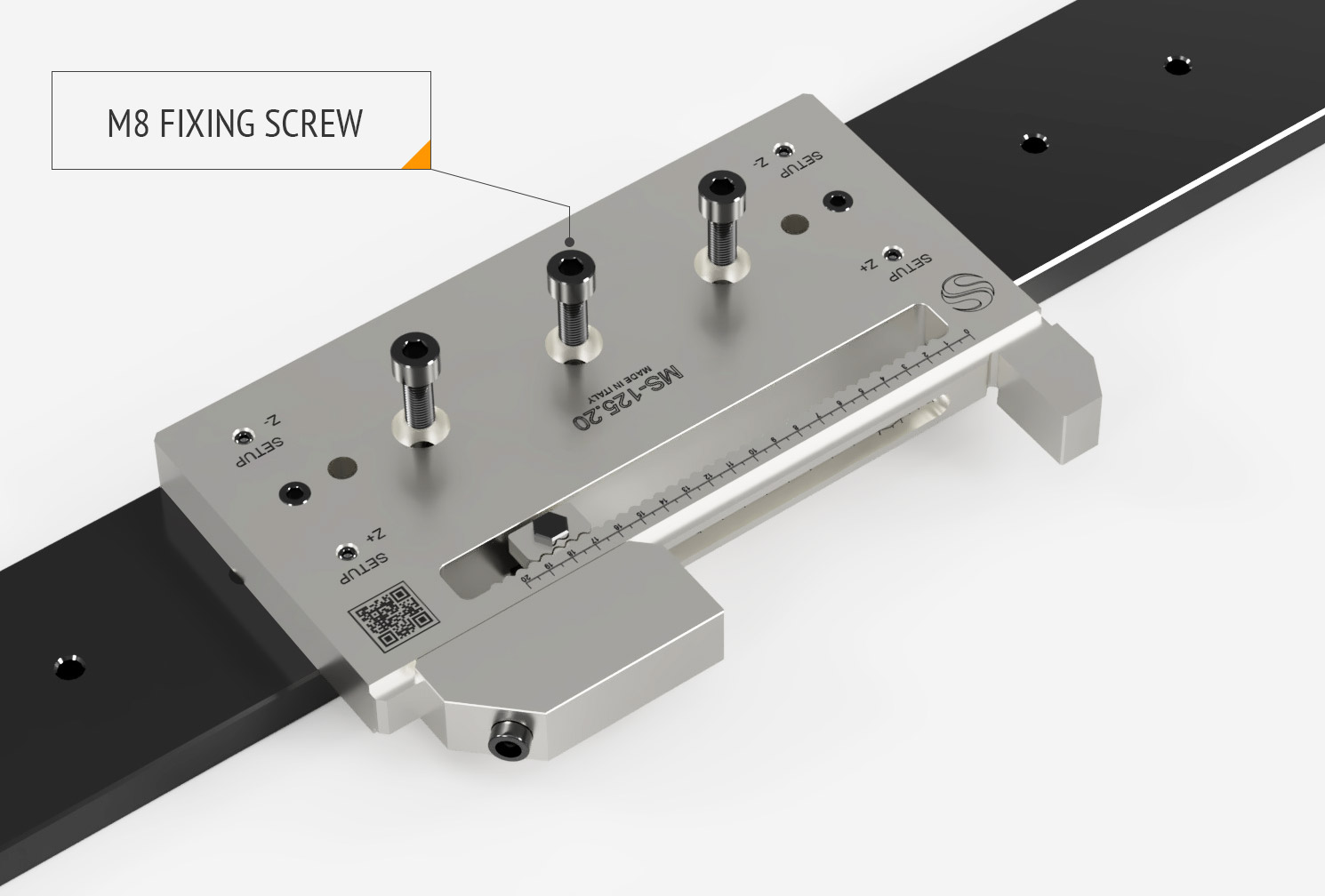

After positioning the vice on the machinery, tighten M8 screws taking care to not lock completely.

Video tutorial step 1

Step 2 Fixin

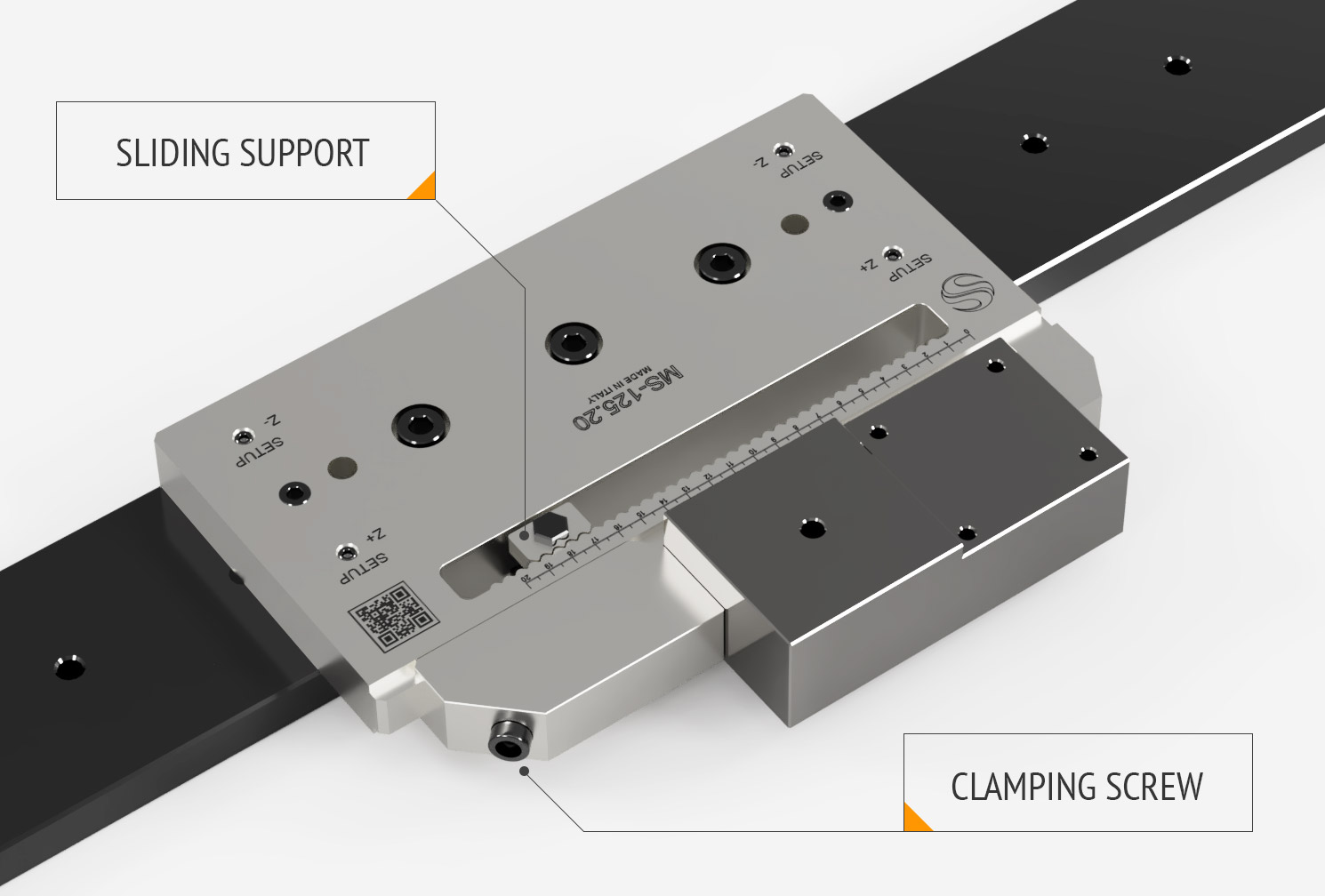

After fixing the workpiece by sliding the jaw until the touch, fit the two toothed pads in their slots and tighten the vice through the clamping screw.

Video tutorial step 2

Step 3 Leveling

To obtain a perfect orthogonal workpiece position adjust the dedicated grub screw M6 and finally tighten the vice to the work bench through the screws M8.

Video tutorial step 3

Technical Details

MS-200.35

  • Article: MS.200.35
  • Clamping up M8: 12NM
  • Maximum part weight: 12Kg
  • Parallelism: 0.01
  • Squareness: 0.005

MS-125.20

  • Article: MS.125.20
  • Clamping up M8: 7NM
  • Maximum part weight: 7Kg
  • Parallelism: 0.01
  • Squareness: 0.005

STF-160

  • Article: STF-160
  • Clamping up M8: 12NM
  • Maximum part weight: 3Kg
  • Parallelism: 0.01
  • Squareness: 0.005
